GC-3WMPT 300A Metal Pass-through HV Connector

The GC-3WMPT 300A High Voltage Connector is a high voltage electric vehicle connector rated voltage up to 1000VDC. It has been designed to connect the high voltage battery pack to other electric vehicle HV components. This connector is designed to withstand temperatures up to 140℃ without any degradation in performance. It can be used in a variety of applications where a high current, high voltage connection is needed.
Temp Range :
-40℃~ +140℃
Max Current :
300A
Rated Voltage :
1000V
Sealing Class :
IP67, IP69K
Share:
GC-3WMPT High Voltage Wire Connectors Details
GC-3WMPT connectors are high voltage 3 way metal pass-through connectors for electric vehicles, with good insulation properties and resistance to corrosion. It has a high degree of flexibility and easy to process with high performance.

The metal pass-through connector is suitable for wire-to-board applications, used for hybrid and electric vehicles such as new energy cars, electric buses, heavy trucks and other construction equipment.

About Guchen Electronics
Guchen Electronics continuously strives to improve the range of EV high voltage connectors for harsh environments. Our customized connectors allow high vibration resistance, and they can reliably withstand mechanical shock and resistant to extreme conditions (temperature, corrosion etc.). All design properties make them able to provide a secure connection.

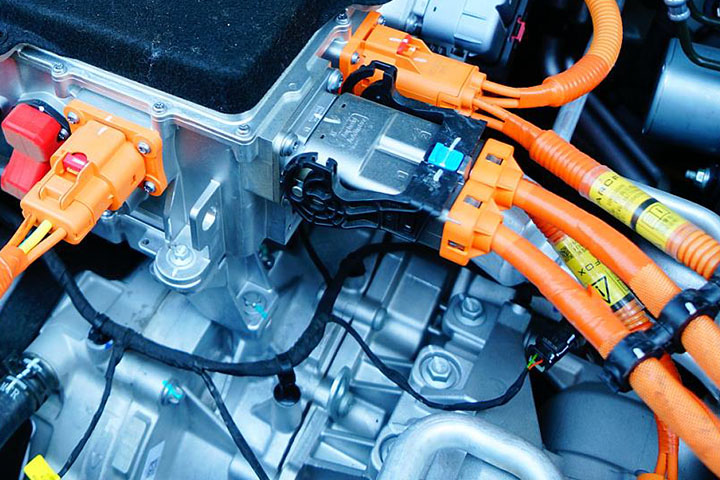

GC-3WMPT High Voltage Wire Connectors
Features of GC-3WMPT High Voltage Connectors
Multiple coding position
Guchen HV pass-through connector features multiple coding positions so you can choose any kind of coding position according to your needs!

Excellent Insulation Performance
The connectors have excellent mechanical property which can withstand high temperature and pressure conditions during use in various applications. They use high quality insulating materials and have excellent insulator designs that prevent arcing between terminals during operation under high voltage conditions. Therefore, they can be used safely even at high voltages exceeding 1000VDC. You can be sure that your electrical equipment will be protected when it is used with GC-3WMPT high voltage connectors

Compact Dimensions
The GC-3WMPT connectors are small in size compared with conventional connectors used in EVs, HEVs, FCEVs and PHEVs. Its compact dimensions make it easy to install - can be installed in a limited space between components, saving installation space on the vehicle chassis.

Orange Corrugated Tube can be Assembled

The high-voltage cables of new energy vehicles are generally connected to the connectors via orange corrugated pipe, which plays the role of sealing, waterproof, anti-wear, noise reduction, heat insulation, aesthetic, efficiently bundling and routing HV cables, and very resistant to deformation.
Applications
Scope of Application: High voltage/high current connections between PDU (power distribution unit), integrated EV motor controller (five-in-one controller or four-in-one), MCU, E-motor, DC/DC etc.
high voltage connector for electric vehicles
3-Way Pass Through HV Connector
Guchen 3-Way Pass Through HV Connector
EV high voltage metal connector
EV high voltage metal connector
Electric Bus High Voltage Connectors
Electric Bus High Voltage Connectors

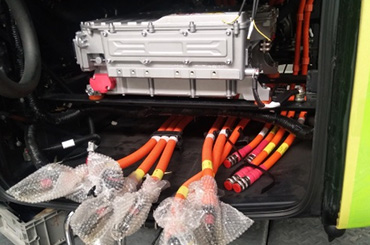

3-way high voltage wire connectors
3-way high voltage wire connectors
Configurations

Description Item No. GC-3WMPT-21-70YP
Electrical Performance Rated voltage 1000V
Withstand voltage 4000V
Rated current MAX 300A
Insulation resistance 5000MΩ
Mechanical Properties Pins 2pins 3pins
Mating cycles >100 Times
Cross sections 16mm²  25mm²  35mm²  50mm²  70mm²
Vibration class acc. To QC/T 1067.1-2017 V3
Raw Material Shell Aluminum alloy
Shielding Copper alloy
Insulator PA66
Sealing Rubber material
Environmental Performance Operating temperature -40℃~140℃
Protection Grade IP68 IP6K9K
Salt Spray 96h
