GCS1 8mm Energy Storage Connector Details

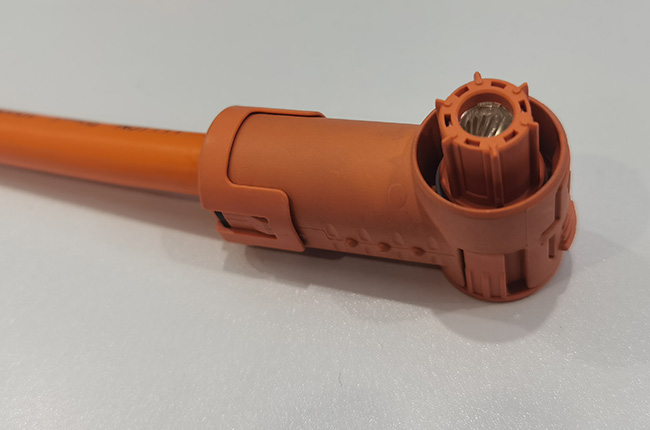

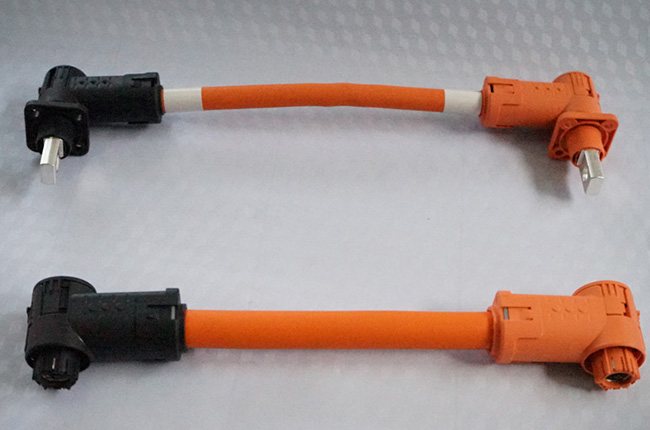

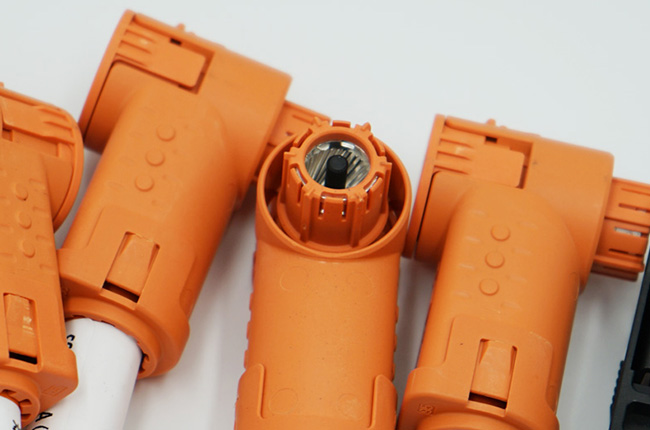

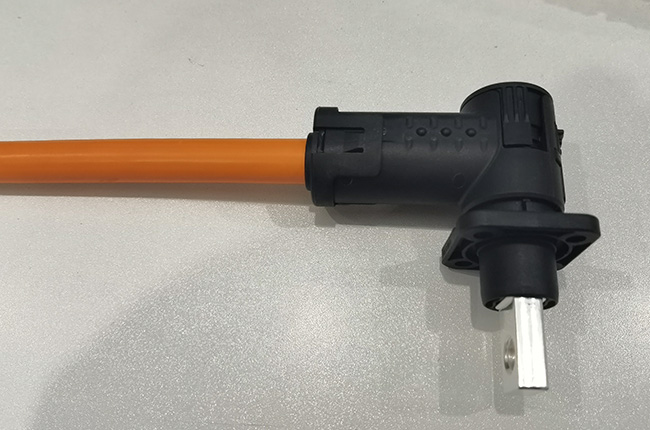

The GCS1 12mm connectors are high-current, high-voltage connectors used to interconnect battery modules in a battery energy storage system (BESS). They feature a locking mechanism that allows the connector to be inserted and removed with one hand. The RoHS-compliant battery high voltage connector has a power rated voltage of 1500V DC, with 250A to 350A current ratings, and has an operating temperature range of -40℃ to 125℃.
Guchen GCS1 Series includes a variety of options for 100A to 350A current applications. The GCS1 Series connector also provides finger protection during assembly that meets IP69K requirements, ensuring worker safety while providing reliable performance over many years of operation.

Main parameters:
Applicable wire diameter: 70mm² / 95mm² / 120mm²
Rated current: 250A / 300A / (350A/400A)
Rated voltage: 1500V

Your benefits at a glance:

► Highly reliable connector design
GCS1 12mm battery connector provides high reliability and safety through its electrical insulation resistance test level at 40℃ temperature and 50% relative humidity (RH).

► High current carrying capability
The connector features a design with a high current carrying capability of 250A, 300A to 350 Amps, making it suitable for direct connection of battery cells.

► High flexibility, 360 degree rotation
GCS1 12mm battery high voltage connector is designed to provide users with the flexibility to connect multiple batteries in parallel or series configurations. The energy storage connector streamlines assembly, installation and maintenance due to its compact size and secondary locking mechanism that prevents disconnection from the battery terminal.

Applications

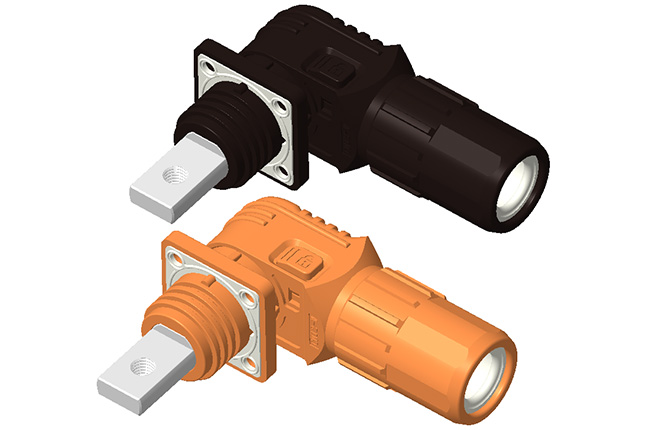

12mm high-voltage battery connector for energy storage system

High-current, high-voltage connectors used to interconnect battery modules

GCS1 12mm battery connector

BESS connector with a high current carrying capability

Standard Configuration of GCS1 12mm Battery Pole Connector:

Model		GCS1 12mm
Conductor cross-section		70mm²	95mm²	120mm²
Electrical Performance	Rated current	250A	300A	350A
	Rated voltage	1500V
	Withstand voltage	4000V
	Insulation resistance	5000MΩ
	The above insulation resistance is tested in an environment with a temperature below 40°C and a humidity below 50%RH; When the humidity is above 95%, the insulation resistance is ≥300MΩ.
Mechanical Performance	Mechanical life	100 times
	Number of contacts	1
	Vibration level	QC/T 1067.1-2017 V1
Environmental resistance	Protection class	IP67 (optional), IP69K, Sockets are individually sealed(optional)
	Operating temperature	-40℃~125℃
	Salt spray	Neutral salt spray 48h(unsealed); 480h(sealed)
Main material	Material (hood/housing)	Nylon (Polyamide- PA)
	Material (seals)	Silicone Rubber
	Material (contacts)	Silver plated red copper
