Current Carrying Capacity and Cable Compatibility: The GCMC1-300 is designed to support a maximum current of 300A, ensuring that it can handle high-power requirements in EV applications.It is compatible with 35mm², 50mm², and 70mm² cables, providing flexibility in choosing the appropriate cable size based on specific application needs.
Multiple Keying Options: To ensure proper alignment and prevent misconnection, the GCMC1-300 offers six different keying options: X, Y, U, V, W, and T. This variety allows customers to select the keying that best suits their application, enhancing safety and reliability.

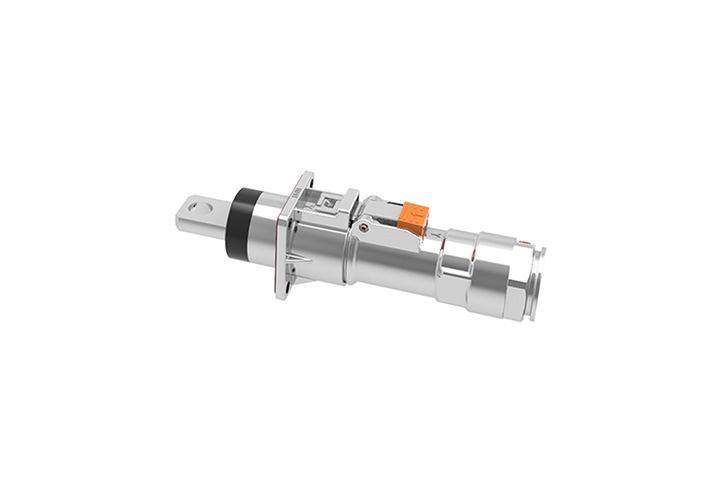

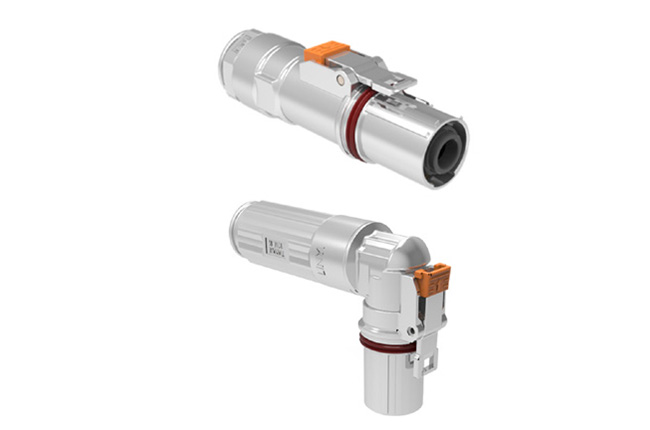

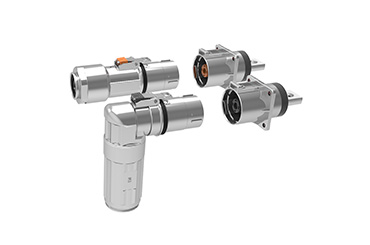

Design Flexibility: The 300A connector is available in both 90° and straight plug designs. This flexibility allows customers to choose the configuration that best fits their EV design and installation preferences.Whether space constraints require a 90° angle or a straight plug is more convenient, the GCMC1-300 has you covered.

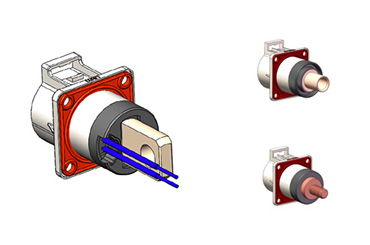

High Voltage Interlock (HVIL) Functionality: Safety is paramount in high-voltage applications, and the GCMC1-300 is equipped with HVIL functionality to ensure that the high-voltage system is properly isolated during connection and disconnection. Notably, the HVIL wires are placed on the receptacle side, making it easier to integrate into various EV systems.
Exceptional Protection Grades: The GCMC1-300 boasts a protection grade of IP68 & IP6K9K, ensuring that it is dust-tight and can withstand powerful water jets from any direction. This makes it ideal for use in challenging environments where exposure to dust, water, and other contaminants is a concern. Additionally, the connector meets IPXXB & IPXXD standards, providing further assurance of its safety and durability in high-voltage applications.
Enhanced Corrosion Resistance: The GCMC1-300 connector is tested to withstand 96 hours of salt spray as standard, with customizable options available for up to 336, 480, or even 720 hours. This flexibility ensures reliable performance in coastal, marine, or other highly corrosive environments.

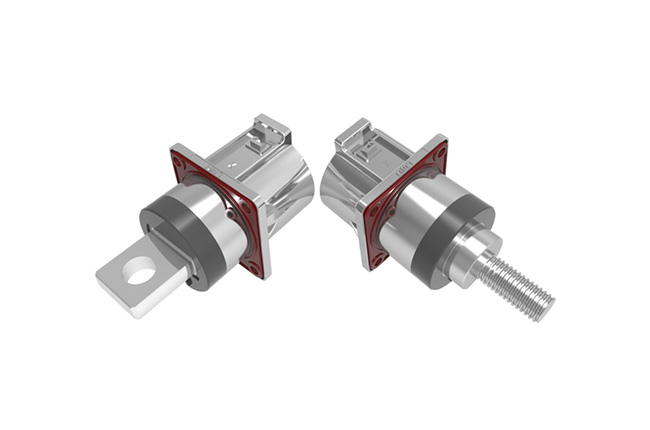

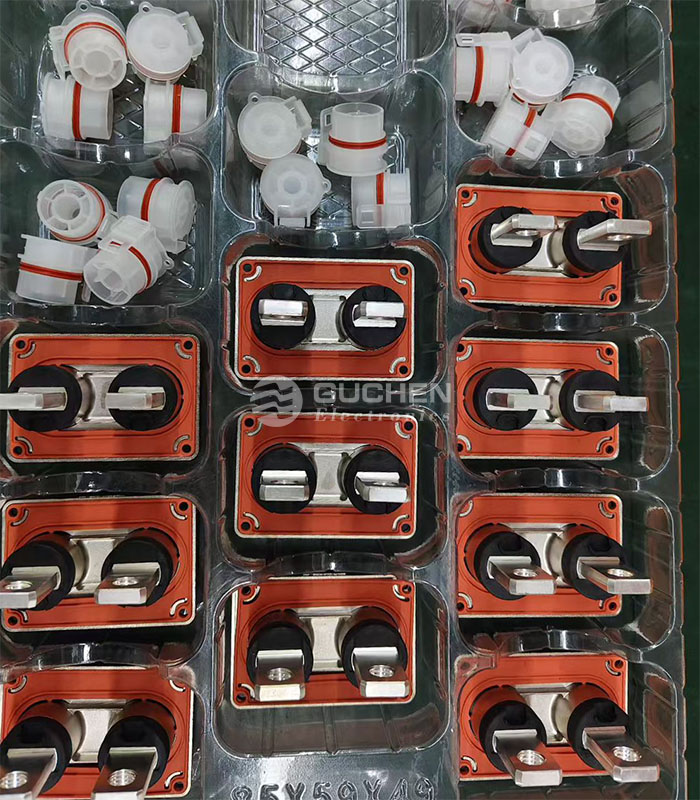

The
300A connector receptacle is available in both
single-pole and dual-pole configurations, offering flexible solutions for high-current applications. Designed for reliability and ease of installation, it ensures secure electrical connections in demanding automotive and industrial environments.

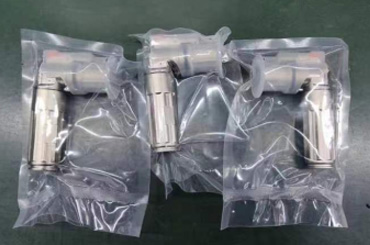

Sample Orders Available:To facilitate testing and evaluation,
Shenzhen Guchen Electronic offers sample orders of the 300A and
500A 1500V connector. This allows customers to assess the product's performance in their specific applications before committing to larger quantities.
Product Upgrade Notice:
Our 300A High Voltage Connector, previously compatible with up to 70 mm² cables, has now been upgraded to support
95 mm² cables as well. For detailed product specifications, technical support, or project inquiries, please contact our Project Manager.
