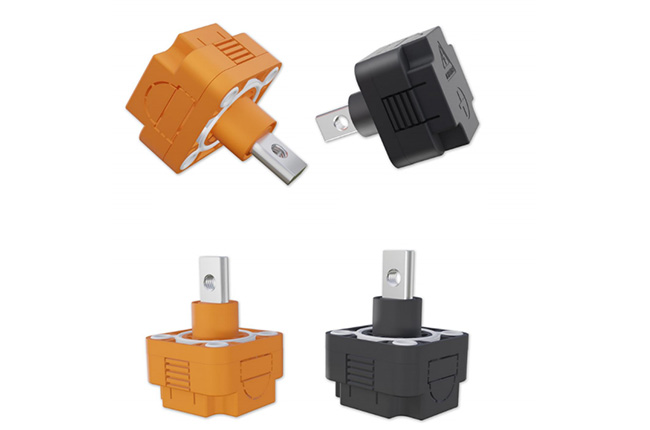

GCS2 300A Battery Copper Bus Bar Connector Details

GCS2 connector is a safe and economical two-way energy storage connector for connecting bus bars, rated current 300A, operating voltage up to 1500V DC. It has a wide range of applications in energy storage solutions such as modular battery storage solution, residential storage battery modules and other BESS.
The busbar connector can be used in harsh environments such as high temperature environment.

About Guchen Electronics

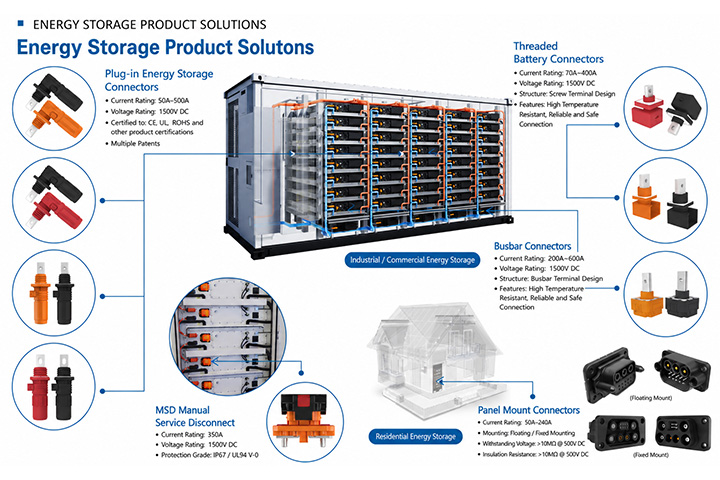

Guchen Electronics provides one-stop future-oriented connection technology for battery energy storage systems. Our battery storage connectors deliver high-current performance along with various configuration options. These power connectors ensure highest degree of safety, and excellent for both commercial and residential energy storage solutions.

The main features of GCS2 300A battery bus bar connectors are as follows:

◆ Great waterproof performance
It has good waterproof performance and long service life. The sealing rubber parts ensure that the connector will not be affected by water vapor or dust when installed outdoors.
PS: Non-waterproof version is optional, with strong selectivity.

◆ Fast installation
Direct contact with the battery module on the rack bus, the upper cover buckling that is to achieve rapid installation, which greatly reduces the installation cost and improves installation efficiency. It greatly simplify the installation of power transfer system in battery energy storage systems (BESS).

◆ Maintenance
Quick disassembly for easy access and maintenance.

◆ High cost efficiency
Compared with competitive energy storage connectors, GCS2 copper busbar connectors have more advantages in use cost, which is undoubtedly a cost-effective choice for energy storage enterprises.

◆ High safety
The protection level of the GCS2 300A battery busbar connector is above IP65, which can effectively prevent condensation and salt spray erosion;

Main Parameters:

Model		GCS2
Electrical Performance	Rated current	300A max.
	Rated voltage	1500V
	Withstand voltage	3000VDC
	Insulation resistance	500 MΩ min (at room temperature 25℃)
Mechanical Performance	Mechanical life	At least 20 times (non-violent disassembly);
	Termination method	Bolted
Environmental resistance	Protection class	IP65 (mated)
	Operating temperature	-40℃~125℃
	Temperature rise	45K
	Salt spray	Neutral salt spray 48h (exposed part after assembly)
Main material	Material (hood/housing)	Nylon (Polyamide- PA)
	Material (seals)	Silicone Rubber
	Material (contacts)	Copper
RoHS		Yes
