Product Overview of Electric Compressor Wiring Harness

Guchen Electronic proudly offers the Electric Compressor 16A HV Wiring Harness, specifically engineered for high-voltage electric air conditioning compressors operating at 800V and 900V. This wiring harness is ideal for integration with Guchen’s advanced electric compressor systems, ensuring safe and efficient power transmission in high-voltage environments.

Customizable Design

The cable length can be customized to meet specific customer requirements. Each harness is professionally crimped and assembled in our production facility, undergoing strict quality control before international shipment. This plug-and-play solution enables global customers to install and use the product directly in their high-voltage AC systems without additional processing.

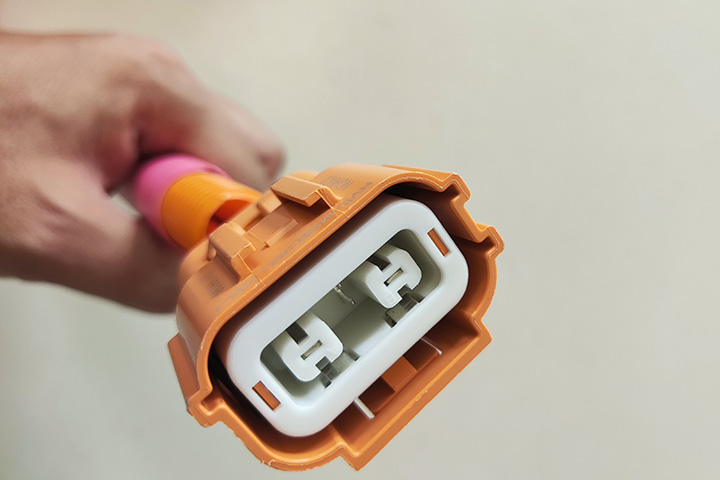

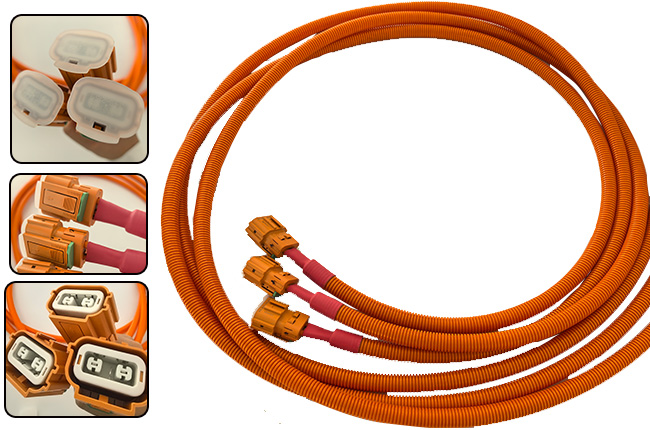

Electric Compressor 16A HV Wiring Harness

Key Features

Compatible with Guchen high-voltage electric compressors (800V/900V)

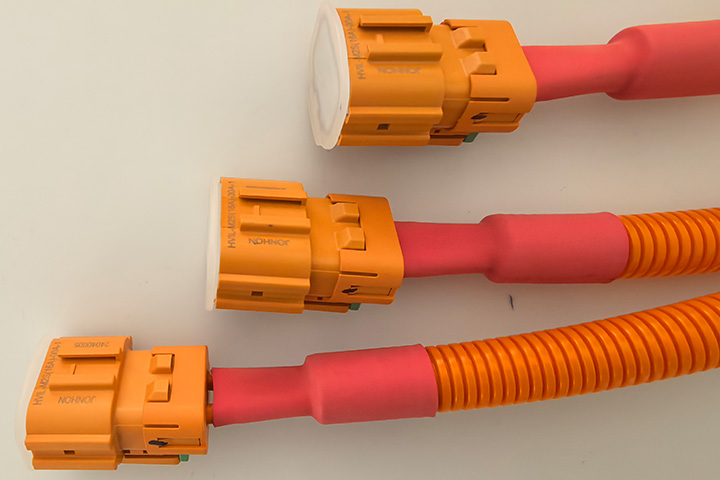

Factory-assembled with Jonhon high-performance HVIL connector
Shielded cable design minimizes electromagnetic interference (EMI)
Custom length options for flexible system integration
Ready-to-use assembly for global delivery

Applications

This wiring harness is ideal for electric vehicles (EVs), commercial buses, and other transportation systems where compact, efficient, and safe electric compressor operation is required under high-voltage conditions.
For customization inquiries, or orders, please contact us directly.
