1500V 200A high voltage connector
200A socket
200a straight plug
200A 90° plug
1500V 200A high voltage connector
200A socket
200a straight plug
200A 90° plug

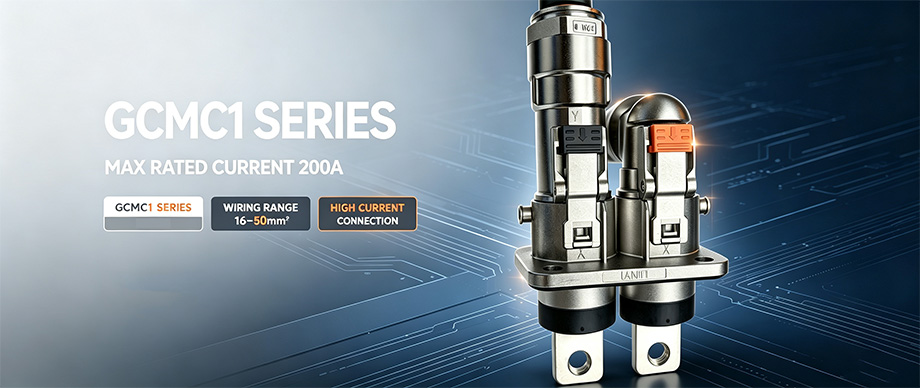

GCMC1 1-Pin 200A 1500V High Voltage Connector

The GCMC1 1-Pin 200A 1500V High Voltage Connector stands as a testament to innovation and excellence in high-voltage connectivity for electric and hybrid vehicles. Its advanced features, reliability, and wide-ranging applications make it a cornerstone component in driving the future of sustainable transportation. Whether powering propulsion systems or facilitating rapid charging, this connector embodies the technological advancements shaping the automotive industry's electrified future.
Temp Range :
Rated current :
Rated Voltage :
Sealing Class :
Product Brief Introduction
In the ever-evolving landscape of electric vehicles (EVs) and hybrid vehicles, ensuring reliable and efficient high-voltage connectivity is paramount. Enter the GCMC1 1-Pin 200A 1500V High Voltage Connector, a cutting-edge solution designed to meet the demanding power needs of modern automotive technology. With its advanced features and robust design, this connector is poised to revolutionize the way power is transferred in electric and hybrid vehicles.

The GCMC1 High Voltage Connector, with its model number GCMC1, offers a seamless blend of power, safety, and reliability. Designed for high-voltage applications, this connector is engineered to deliver consistent performance under demanding conditions. With a pin number of 1, capable of handling currents of up to 200A and voltages of 1500V DC, it exemplifies precision engineering tailored for the automotive industry's stringent requirements.

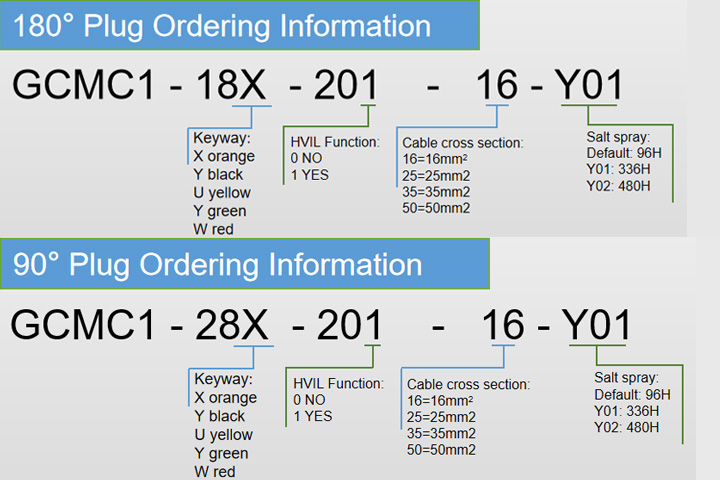

200A high voltage connector available models
Main Features
◆ High Current and Voltage Handling: The GCMC1 Connector is optimized to handle high currents of up to 200A, making it ideal for power-intensive applications in electric and hybrid vehicles. Its impressive 1500V DC voltage rating ensures stable power delivery across the system.

◆ Reliability: Built to withstand the rigors of daily use, this connector prioritizes reliability. Its durable construction and high-quality materials ensure long-term performance even in challenging environments.

◆ HVIL Function: The inclusion of High Voltage Interlock Loop (HVIL) functionality enhances safety by preventing inadvertent high-voltage exposure during EV high voltage connector mating and unmating processes. This crucial safety feature aligns with industry standards and regulations, ensuring user and vehicle safety.

◆ Versatile Plug Options: The GCMC1 Connector offers flexibility with two plug types: the 90-degree plug and the 180-degree plug. This versatility enables seamless integration into various vehicle designs and layouts, optimizing space and usability.

Wide Application in Electric Vehicles

The GCMC1 Connector plays a pivotal role in powering electric and hybrid vehicles across diverse applications:

1.Battery Management Systems (BMS): Integrating with BMS systems, the connector facilitates efficient charging and discharging of high-capacity batteries, contributing to extended vehicle range and performance.

2.Electric Propulsion Systems: From electric motors to power inverters, the GCMC1 Connector ensures reliable power transmission, supporting smooth acceleration and consistent performance in electric propulsion systems.

3.Charging Infrastructure: Beyond vehicle applications, this connector is integral to high-power charging stations and infrastructure, enabling rapid charging capabilities for EVs, thus promoting widespread adoption and convenience for EV owners.

4.Vehicle Control and Monitoring: The connector's HVIL function enhances safety in vehicle control and monitoring systems, ensuring seamless communication and operation while prioritizing occupant and system safety.
Technical Parameters of GCMC1 200A Socket and Plug
Description Item No. GCMC1
Electrical Performance Rated voltage 1500V;
500V DC (HVIL)
Withstand voltage 4000VAC/6000VDC;
500VAC (HVIL);
Rated current 200A Max.
Insulation resistance 2GΩ;
550MΩ (HVIL)
Mechanical Properties Pole 1 Pin
Mating cycles >100 Cycles
Cross sections 16mm²/25mm²/35mm²/50mm²
Fire-proof level: UL94 V-0
Raw Material Plug housing Zinc alloy
Insulating shell PBT
Shielding ring Aluminum alloy
Terminal Copper
Environmental Performance Operating temperature -40℃~125℃
Protection Grade IP68 & IP6K9K (IP68: 1m Water 48H);
Salt spray 96H
