Performance and Safety
The PRC Series 60A connector is rated for a voltage of DC1000V, ensuring it can safely handle the high-voltage demands of electric vehicles. This rating makes it an excellent choice for applications where reliability and safety are paramount.
One of the standout features of the PRC Series is its High Voltage Interlock Loop (HVIL) capability, available on the socket end. HVIL is a critical safety feature in
EV connectors, ensuring that the high-voltage circuit cannot be energized unless the connector is properly mated. This safety mechanism protects both the vehicle and the technician, preventing potential hazards during maintenance or operation.
The connector also offers four distinct key positions—U, V, X, and Y. These key positions help prevent mis-mating, ensuring that the connector is always installed correctly. This feature not only enhances safety but also simplifies the installation process, reducing the risk of errors during assembly.
Rigorous Testing and Compliance
Our high-voltage connectors have undergone rigorous testing to ensure they meet the highest industry standards. The PRC Series has been tested according to several critical benchmarks, including LV215-1-2013, GB/T 11918.1-2014, and QC/T 1067.1-2017. These tests validate the connector's performance under various conditions, ensuring that it meets or exceeds the requirements for safety, durability, and reliability in EV applications.
By adhering to these stringent standards, we ensure that the PRC Series connectors are not only reliable but also compliant with the most demanding regulatory requirements, giving our customers peace of mind when integrating these connectors into their vehicles.
Flexibility in Application

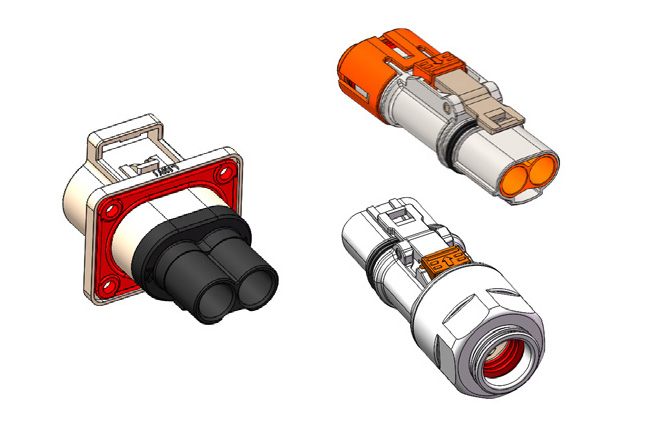

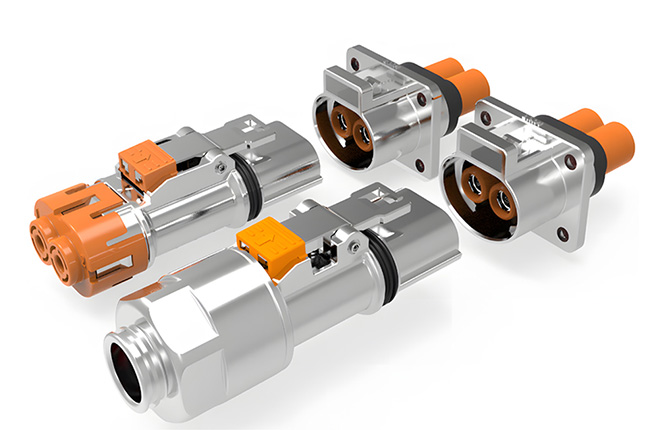

While the PRC Series 60A connector is a 2-position connector, we understand that different applications require different configurations. That’s why we also offer 3-position and 4-position connectors within the PRC Series, providing the flexibility needed to suit various customer applications. Whether you need to connect additional components or require a different configuration to meet specific design requirements, the PRC Series has you covered.
The ability to choose between 2, 3, and 4 positions allows for greater customization and adaptability in your EV design. This flexibility is particularly beneficial for OEMs and engineers who need to tailor their electrical systems to specific vehicle models or applications.
