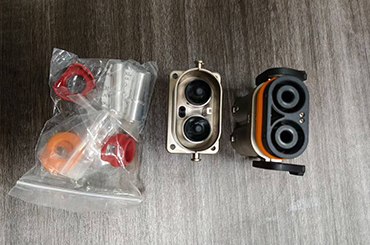

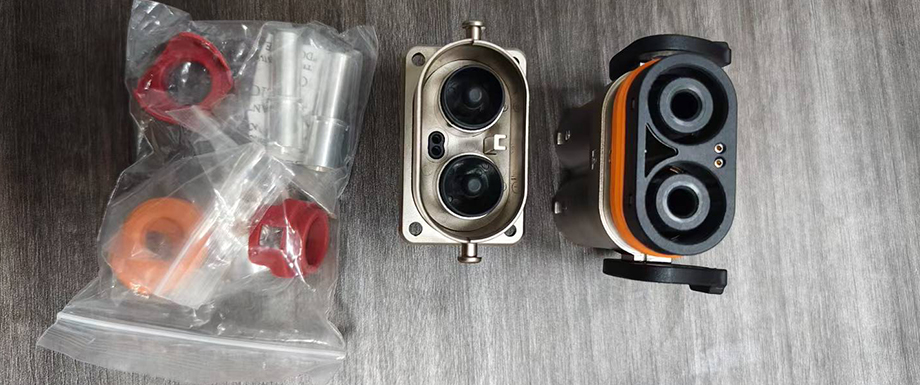

2 pole high voltage metal connector
2 poles metal connector plug

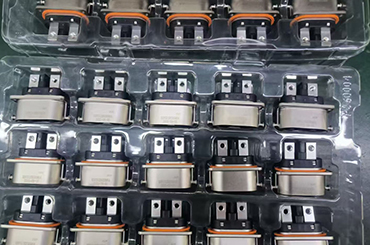

2 poles metal connector socket
2 pole high voltage metal connector
2 poles metal connector plug
2 poles metal connector socket

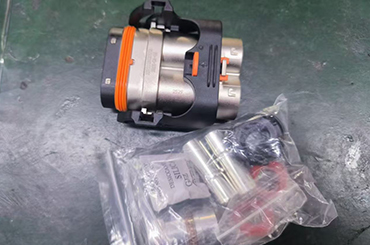

GC-EVH600 2 Poles Metal Connector for 16mm2 & 25mm2 Cable

The 2 poles metal connector has excellent corrosion resistance, good electrical conductivity, strong locking force and long service life etc.. It can be well connected with 16mm2 and 25mm2 shielding cables through crimping process. If you have any requirements about the above products, please feel free to contact us.
Temp Range :
-40℃~ +125℃
Rated current :
100A, 120A
Rated Voltage :
1000V
Sealing Class :
IP67
Share:
Introduction of Guchen 2 Pole High Voltage Metal Connector
GC-EVH2 2 pole metal connector is used to join two single core cables together. This 2 pole high voltage connector is designed to connect the 16mm2 and 25mm2 shielding cables. It's suitable for high voltage use, such as electric car, inverter, electric motor, HV PDU, DC-DC converter or on-board charger. The material of the connector is zinc alloy, which is heat resistant and corrosion resistance. The contact surface is copper with good conductivity, so that the contact resistance is small. The sealing part of this 2 poles connector silicone rubber, with great sealing performance, it can be used in harsh environments.
electric vehicle 2 poles metal connector for 16mm2 and 25mm2 shielding cables
Specification & Features of GC-EVH600 2 Poles Metal Connector
Specification Features
◆ Pole: 2 pos
◆ Working temperature: -40℃~+125℃
◆ Rated current: 120A max.
◆ Insulation resistance: 200MΩ
◆ Withstand voltage: 3000VAC
◆ Mechanical life: 200 times min.
◆ Salt spray:48H
◆ Waterproof: IP67 (mated condition)
◆ Wire range: 16mm2 , 25mm2
◆ Material: metal
◆ HVIL function is optional
◆ Touch-proof design
◆ Multiple key options: A, B, C
◆ 360° shielded connection
◆ It provides a reliable connection to the EV components, suitable for high-voltage DC power transmission.
◆ Secondary locking ensures that it remains in place even during vibrations or shocks
◆ The connector can be easily installed.
