GCS2 500A/600A High Current Busbar Connector

Featuring a compact structure, low temperature rise, high electrical conductivity, and excellent environmental protection performance, the GCS2 busbar connector enables flexible battery pack integration and supports reliable parallel connection between battery modules.

The GCS2 series is engineered for high-power energy storage applications, offering 500A/600A rated current capacity with optimized current-carrying performance.
The connector adopts a pure copper conductor structure with silver plating treatment, ensuring:

Excellent electrical conductivity
Reduced contact resistance
Lower heat generation
Stable long-term operation under high current loads

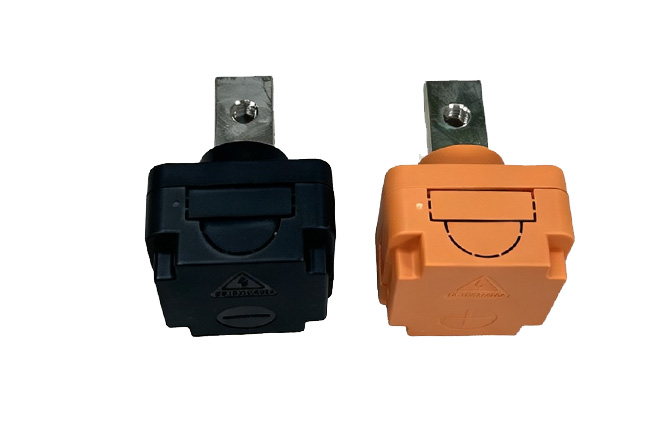

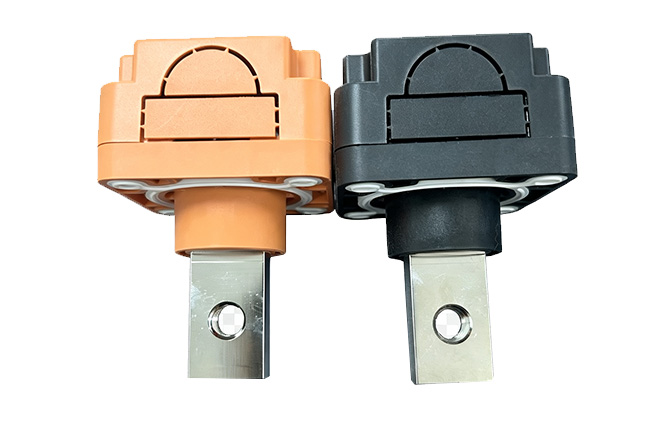

GCS2 series 500A/600A 1500VDC busbar connector

Key Features & Advantages

◆ 1500VDC High Voltage Performance
Designed for modern high-voltage energy storage systems, the GCS2 supports 1500V DC rated voltage, meeting the requirements of next-generation BESS platforms.
Advanced insulation design provides:
--High dielectric strength up to 6800V AC/min
--Insulation resistance exceeding 5000MΩ
--Enhanced electrical safety and reliability

◆ Flexible Busbar Routing Design
The innovative structure allows the busbar to exit from four different directions, providing greater flexibility for system layout and installation.
Advantages include:
--Optimized battery pack design
--Reduced installation space requirements
--Convenient system integration
--Improved assembly efficiency

◆ Arc-Resistant & Waterproof Structure
The GCS2 connector adopts an advanced protective design to improve operational safety in demanding environments.
Key protection features:
--Arc-resistant structure
--Waterproof sealing design
--IP67 protection rating
--UL94 V-0 flame retardant housing material
It ensures reliable performance in harsh environments, including outdoor energy storage cabinets and industrial applications.

◆ Reliable Battery Pack Parallel Connection
The GCS2 series is designed for battery module connection and parallel connection applications, enabling efficient power distribution between battery packs.
Typical applications include:
--Containerized Energy Storage Systems (ESS)
--Industrial Battery Energy Storage Systems
--Renewable Energy Storage Solutions
--High-voltage battery packs

Main Parameters:

Technical Parameters
Material	PA66 / T2 Tin-Plated Copper	Rated Voltage	1500V DC
Rated Current	500A / 600A	Salt Spray	NSS 96h
Dielectric Strength	6800V AC/min	Insulation Resist	>5000MΩ
Operating Temperature	-40 ~ +125°C	Protection Rating	IP67/UL94 V-0
Compatible Cable Size	185mm²（Max）	Compatible Cable Lug	JG185-10（Max）
Mounting Screw Torque	M4×10/2N.m	Connection Screw	M10×20/25N.m

GCS2 Series Selection Guide

Series	Current Rating	Recommended Application	Key Benefits
GCS2 300A/350A	300A / 350A	Modular ESS Battery Packs & Energy Storage Cabinets	Compact design, flexible installation, optimized system integration
GCS2 500A/600A	500A / 600A	High-Power BESS & Industrial Energy Storage Systems	Maximum current capability, high reliability, heavy-duty performance
