GC-MC20 20A HV Low Current Metal Connector

The 20A electric vehicle connectors feature a positive locking mechanism that makes them ideal for high voltage applications. It is a circular metal connector that delivers low-currents and high performance. These HV connectors have been specifically designed to handle low power loads.
Temp Range :
-40℃~ +140℃
Max Current :
20A
Rated Voltage :
1000V
Sealing Class :
IP67, IP69K
Share:
GC-MC20 Connector Details
GC-MC20 is a high voltage low current metal connector rated at 20A 1000V DC.

It is used for connecting the power supply lines of electrical equipment in electric commercial vehicles. The circular metal connector can withstand up to 96+ hours of salt spray.


Reliable electric connection
Guchen EV High Voltage Connectors
Guchen Connectors are RoHS compliant. They are available in various materials (metal or plastic), sizes, currents and voltages to meet various EV application requirements. Guchen connectors can be used in wire to wire connections, wire to board connections and board to board connections with either crimp or solder termination.
Reliable electric connection
Features
● 2- to 3-positions options

● 90° and 180° plugs options
Straight and right angled cable couplers as well as corresponding receptacles are available.

● Secondary locking
The secondary level locking mechanism provides safe and reliable electric connection in electric and hybrid vehicles.

● Blade terminal connectors
Blade terminals can meet large scale demands, available for mass production.

● Terminal Position Assurance (TPA) automotive connector
TPA technology (device) ensures all terminals are fully seated. TPA function can effectively prevent terminals from backing out of the housing. TPA plugs and receptacles are ideal for high-vibration EV applications.

● Touch-proof design, improved blind-mating efficiency
Blind mating is an added function of GC-MC20 connectors. It helps prevent mismating.

● Optimized sizing
Compact structure, the plugs are with excellent shielding performance.

● Multiple keying options: A, B, C, D, E
Applications
High voltage Low-current Connector: Apply for PDU, A/C, PTC, DC/DC, OBC, etc in pure electric or hybrid commercial vehicles. For electrical power transmission at high voltage and low current: electric a/c compressor, electric defroster, EPS, PTC heater etc.

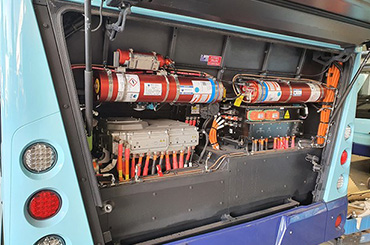

electric connection in electric and hybrid vehicles

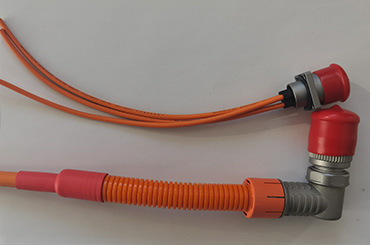

high voltage elbow connector

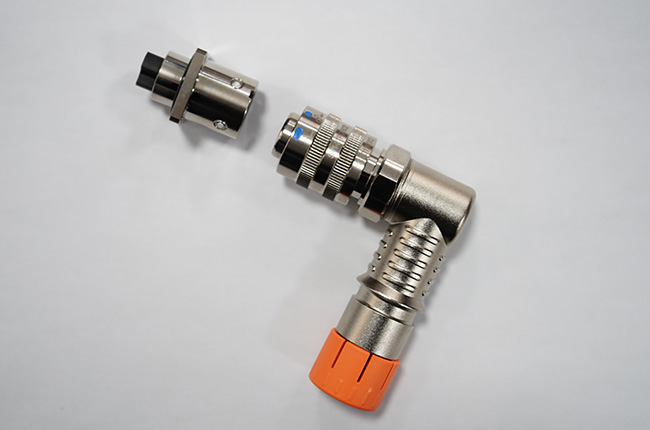

GC-MC20 high voltage elbow connector, right-angle

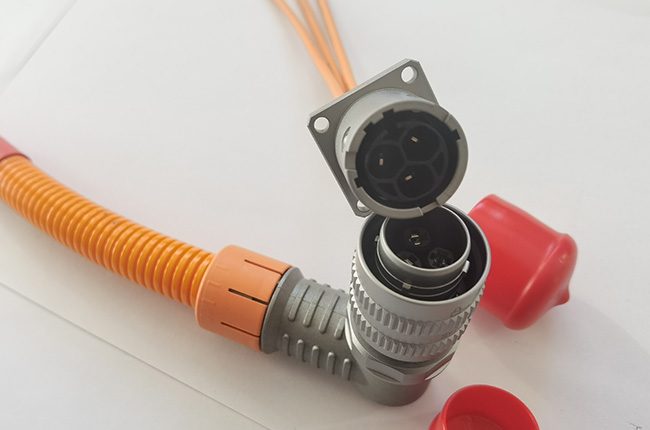

Plug and mating socket

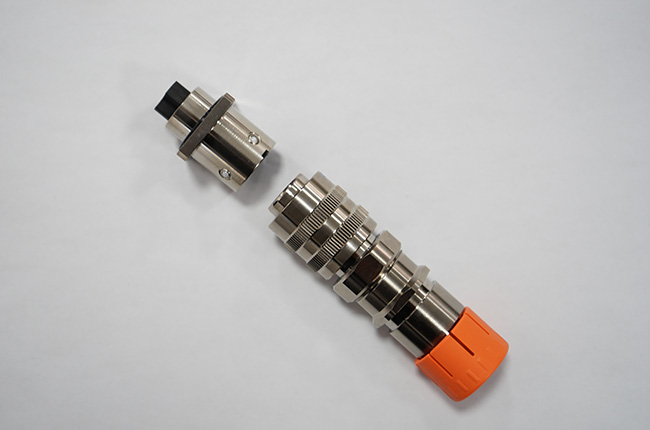

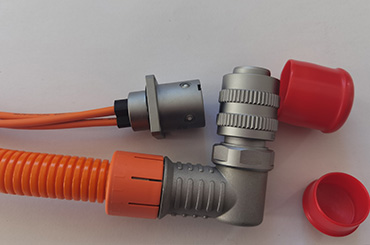

Plug and mating socket (receptacle) of EV HV metal connector

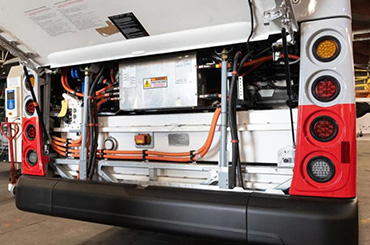

Metal connector for electric bus HV connection
Metal connector for electric bus HV connection

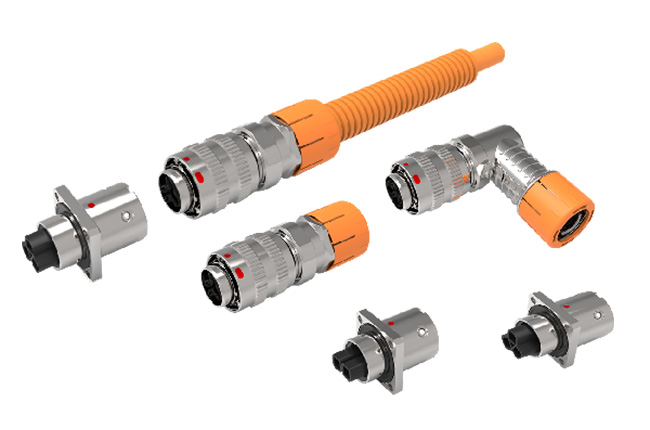

20A high voltage connector
Electric bus 20A high voltage connector
Technical Details of GC-MC20 High Voltage Cable Connectors

Description Item No. GC-MC20
Electrical Performance Rated voltage 1000V
Withstand voltage 4000V
Rated current 20A
Insulation resistance 5000MΩ
Mechanical Properties Pins 2pins / 3pins
Mating cycles >100 Times
Applicable wire diameter Plug 2x2.5mm², 3x2.5mm²   Socket 2.5mm²
Terminal wiring method crimp
Raw Material Shell Aluminum alloy
Shielded / Contact parts Copper alloy
Insulator PA66
Sealing Silicone Rubber
Environmental Performance Operating temperature -40℃~140℃
Protection Grade IP68 IP6K9K
Salt Spray 96h / 504h
