GC-DXC2 Series 250A High Voltage Interlock Connectors

Secondary locking function, preventing the connector from being pulled out when it is disconnected
Secondary locking function means that when the plug is inserted into the socket, it can only be removed by applying a certain amount of force to the secondary locking pin. This prevents accidental disconnection during use.
GC-DXC2 Series 250A HV Interlock plastic connectors use straight push and pull type of shrapnel locking structure with a secondary locking function to effectively prevent accidental disconnection caused by incorrect operation, thereby improving vehicle safety. It also has an excellent anti-vibration performance.
The secondary locking function makes the electric vehicle connector more reliable and secure.

High mechanical strength
GC-DXC2 high voltage connectors system can reach 250A at 85℃, up to 1000V, with strong current carrying capacity. The high performance connector is superior in shielding performance, with a high degree of anti-interference ability, anti-electromagnetic interference and anti-static. It is suitable for use in harsh environments.

Easy, fast and reliable connection
The 250A high voltage connector is designed for easy, fast and reliable connection of the electric vehicle high voltage cables. The connector is made of high temperature resistant engineering plastics and has an excellent electric insulation performance.

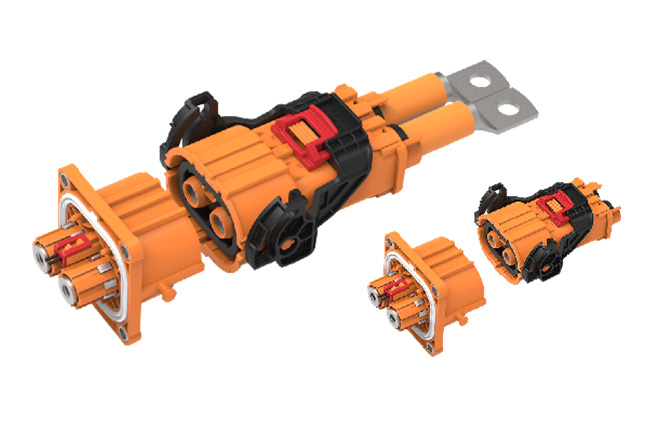

The HVIL connector system is composed of three different components:

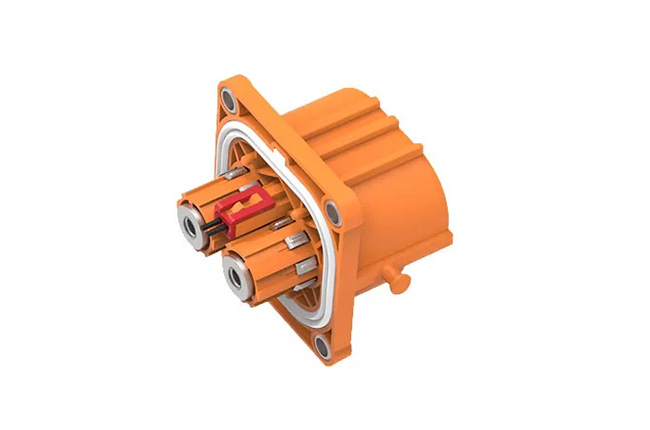

1) The receptacle (mating socket), which is connected to the vehicle’s power distribution unit;

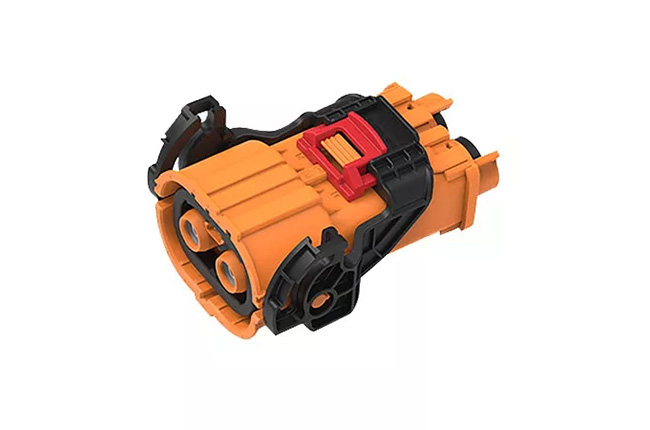

2) The plug, which is connected to the high voltage cable;
3) The handle, which allows for quick and easy disconnection.

Compact structure and small volume
GC-DXC2 Series 250A HV Interlock plastic connectors with compact structure and small volume.The temperature increase slowly when work, and the shell made by plastic, which is more light weight and more security in using.
