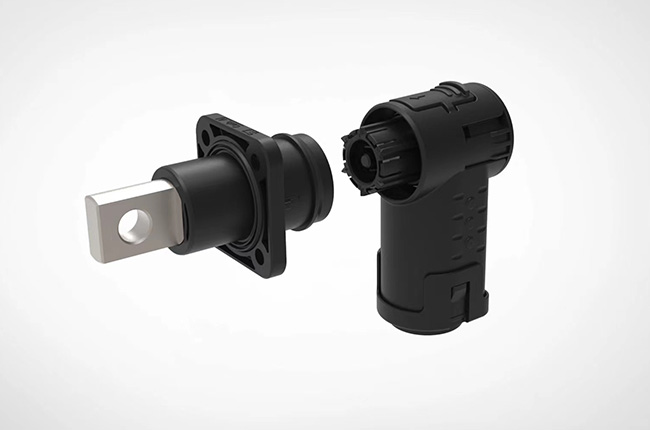

GCS1 6mm 100A-120A Battery Pole Connector

It is a high voltage battery connector for reliable and compact connections of modular energy storage systems. It accommodates contacts for currents up to 120A and 600V.
Temp Range :
-40℃~125℃
Rated Current :
100A, 120A
Rated Voltage :
600V
Protection Degree :
IP67, IP69K
Share:
GCS1 6mm Energy Storage Connector Details
GCS1 6mm energy storage connector is used for positive and negative high voltage connections between battery packs for battery energy storage systems (BESS).
They can be used for fast, safe and cost effective installation of energy storage systems with voltages up to 1,000 V and transmit nominal currents up to 120A.
The main series include 100A \ 120A. Corresponding to 16 mm², 25 mm² high voltage cables.
GCS1 high voltage battery connectors are widely used in energy storage cabinets, energy storage stations, mobile energy storage vehicles, home energy storage systems, photovoltaic power stations wind power stations and other battery pole connections.

Main Parameters
Applicable wire diameter: conductor cross-sections from 16mm² to 25mm²
Rated current: 100A / 120A
Rated voltage: 1000V DC
Color: red (for connecting the positive terminal) / black (negative)
Usage: Used for connecting the battery poles of the energy storage system (ESS).
energy storage systems connectors
GCS1 High Voltage Battery Connector Features
1. Blind Plug, 360° Rotation when Plugged in
GCS1 6mm battery pole connection is designed for the energy storage system to be flexibly rotated through 360 degrees.

2. With secondary locking function, more safe and reliable plug-in connections for modular energy storage system.

3. Products support first crimping and then threading. If the battery pole connector is damaged, it can be replaced separately without replacing the HV cable.

4. With key error-proofing function

5. Color error-proofing, easy to identify the battery poles.
The colour red for plus and black for minus, making it easier to distinguish the positive and negative poles of the battery.
Applications
high voltage battery connector for ESS
battery pole connectors
Battery pole connectors
BESS connectors
BESS connectors
high voltage connector for ESS
Quality high voltage connector for energy storage systems
GCS1 6mm energy storage connector
GCS1 6mm energy storage connector
GCS1 6mm Battery Pole Connector Parameters:
Model GCS1 6mm
Conductor cross-section 16mm² 25mm²
Electrical
Performance
Rated current 100A 120A
Rated voltage 600V
Withstand voltage 3000V
Insulation resistance 5000MΩ
The above insulation resistance is tested in an environment with a temperature below 40°C and a humidity below 50%RH;
When the humidity is above 95%, the insulation resistance is ≥300MΩ.
Mechanical
Performance
Mechanical life 100 times
Number of contacts 1
Vibration level QC/T 1067.1-2017 V1
Environmental resistance Protection class IP67 (optional), IP69K, Sockets are individually sealed(optional)
Operating temperature -40℃~125℃
Salt spray Neutral salt spray 48h(unsealed); 480h(sealed)
Main material Material (hood/housing) Nylon (Polyamide- PA)
Material (seals) Silicone Rubber
Material (contacts) Silver plated red copper
