UQDB Liquid Cooling Connectors for Modular Liquid Cooling in High-Power Fiber Laser Systems

As high-power fiber laser systems continue to evolve toward higher energy density and greater integration, thermal management has become one of the most critical engineering challenges. Modern laser pump modules generate intense localized heat, and traditional air cooling methods are no longer sufficient to maintain stability, efficiency, and long-term reliability.
This has driven a clear industry transition: high-power fiber laser architectures are rapidly moving toward modular liquid cooling systems, where precision fluid control and quick-service connectivity are essential design elements rather than optional accessories.
At the center of this transformation is a small but highly critical component—the liquid cooling quick connector. In advanced laser platforms, connectors are no longer passive plumbing parts; they are now key enablers of modularity, serviceability, and system uptime.


Modular Liquid Cooling: The New Standard in Laser Architecture

In modern laser pump and beam delivery systems, thermal loads are highly concentrated within compact modules. To address this, manufacturers are adopting modular liquid cooling architectures, where each functional unit (pump source, driver electronics, optical modules) is independently cooled through dedicated coolant loops.
This approach offers several advantages:

• Improved thermal stability of laser diodes and pump sources
• Higher power density in compact footprints
• Simplified maintenance and module replacement
• Reduced system downtime in industrial environments
• Better scalability for multi-kilowatt and even higher-power platforms

However, modularity introduces a new requirement: fast, reliable, and leak-free fluid interconnection between modules.

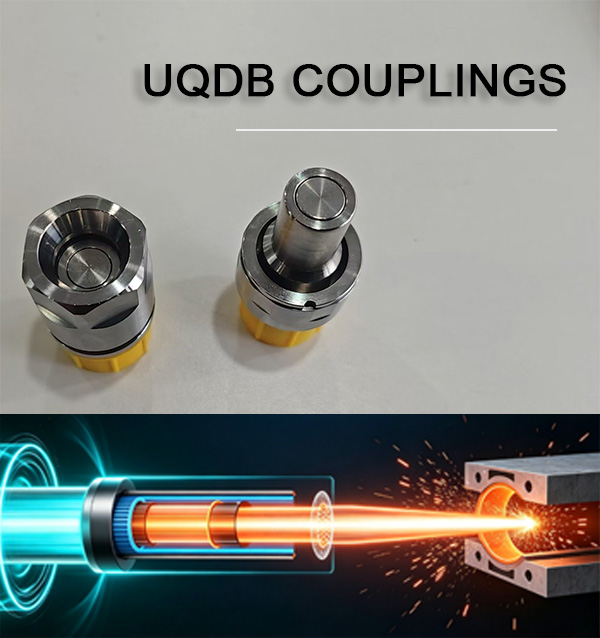

The Role of UQDB Couplings in Internal Branch Cooling Networks

In this evolving landscape, the UQDB liquid cooling quick connector has emerged as a standard interface component for internal branch cooling circuits within high-power fiber laser systems.
Rather than functioning as a simple hose coupling, UQDB06 is designed to support:

• Frequent plug-and-play module integration
• Stable sealing under dynamic pressure conditions
• Low pressure drop for optimized coolant efficiency
• High repeatability for automated assembly environments
• Compact geometry suitable for dense optical-electronic layouts

Within modular laser systems, UQDB06 is commonly deployed in internal branch loops, where coolant is distributed from a main manifold into multiple localized cooling zones. These include:

• Laser pump diode arrays
• Beam shaping and amplification modules
• Power electronics and driver boards
• Thermal stabilization plates and cold plates

By enabling fast disconnection and reconnection, UQDB06 significantly simplifies system assembly, testing, and field servicing.


Why Liquid Cooling Connectors Matter in High-Power Lasers

As laser output power increases, even small thermal inefficiencies can lead to:

• Wavelength drift in pump diodes
• Reduced beam quality
• Accelerated component aging
• Unstable output power during continuous operation

Liquid cooling systems mitigate these risks, but only when the fluid network is engineered with precision. In this context, connectors like UQDB06 directly influence:

• Flow stability
• Leakage prevention
• Thermal response time
• System uptime during maintenance cycles

A poorly designed connector can become a bottleneck in an otherwise high-performance cooling loop.


Designed for Industrial-Grade Reliability

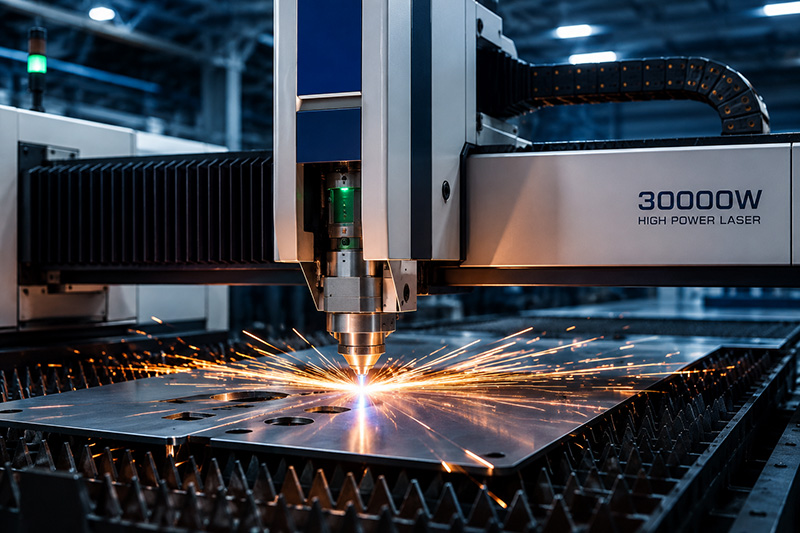

In demanding environments such as industrial cutting, welding, additive manufacturing, and precision material processing, laser systems often operate continuously for long cycles.
The UQDB interface is therefore engineered with a focus on:

• Long-term sealing integrity under repeated mating cycles
• Resistance to vibration and mechanical stress
• Compatibility with high-performance coolant media
• Stable performance across temperature fluctuations
• Ease of integration into modular chassis designs

These characteristics make it particularly suitable for OEMs transitioning toward next-generation modular laser platforms.


Supporting the Future of High-Power Photonics

The shift toward modular liquid cooling is not a temporary trend—it is becoming the architectural foundation of next-generation photonics systems. As laser power continues to scale upward, the importance of standardized, high-reliability cooling interfaces will only increase.
The liquid cooling quick connector represents a practical engineering response to this evolution: compact, modular, and designed specifically for the internal thermal management needs of high-power fiber laser systems.
By enabling fast, secure, and repeatable coolant connections, it helps system designers achieve:

• Higher power density
• Faster assembly cycles
• Simplified maintenance workflows
• Improved overall system reliability



Conclusion

In high-power fiber laser systems, thermal management defines performance boundaries. As modular liquid cooling architectures become the industry standard, interface components like the UQDB06 quick connector play an increasingly strategic role.
More than just a fluid coupling, it is a key enabler of modularity, scalability, and uptime in advanced laser systems—supporting the continuous push toward higher power, greater efficiency, and more compact designs.
