GC-EVCC-3.6 Type 2 EV Charger Cable Details

GC-EVCC-3.6 cabling accessory is a singe phase charging cable between the electric vehicle and universal charging station. It can provide a rate current of 16A on a rated supply voltage of 250VAC. The operating temperature is between -30℃ to 50℃. The IP degree of protection is IP44.
It has an AC power output of 3.6 kW. The 3.6KW charger cable is equipped with a Type 2 connector at charging station end as well as at vehicle end, allowing you to plug in and charge your EV which uses a type 2 plug.

Features of 3.6KW Type 2 to Type 2 EV Charging Cables

◆ Flexible enough to bend around corners or through tight spaces
The EVSE cable is made from high-quality TPU materials, which is soft and elastic, tough and durable. It has a very good tear resistance and tensile strength, which can effectively protect the wire core to ensure that the product has good flexibility and easy to use.

◆ Come in custom lengths
The 16A type 2 EV charging cable can be used outdoors or indoors and comes in length of 5m. what’s more, we provide different lengths of this charger, so you don't have to worry about the length of your cable. If you need a custom length, please contact our customer service representative and we will provide you with the best solution for your specific needs.

◆ UL 94V-0 rated flame retardant cable
This type 2 to type 2 EV charging cable meets all safety standards and has been designed for use with all electric vehicles that require a single-phase connection for charging. It has a current rating of 16 amps and is UL 94V-0 rated, making it flame retardant and safe for use in any environment.

Applications

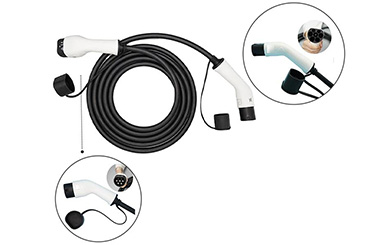

TPU Cable

Female Plug

Technical Specification of 3.6 KW EVSE Cable

Model	GC-EVCC-3.6
Power	3.6KW
Type	Mode 3 charging cable from type 2 to type 2
Mating cycles	no-load plug in/out >10,000 times
Coupled insertion force	45N<F<100N
Impact of internal force	afford 1m drop and 2T vehicle run over pressure
Rated current	16A
Operation voltage	250V
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise	<50K
Withstand voltage	2000V
Contact resistance	0.5mΩ max
Operating temperature	-30℃~50℃
Protection Degree	IP54 (Protective cap); IP44 (plugged in)
Shell	Thermoplastic, flame retardant grade UL94 V-0
Terminal	Copper alloy, silver plated (limiting overheating)

Model	Plug Standard	Current	Phase	Power	Cable Specifications
GC-EVCC-3.6	Type2 To Type2	16A	1 Phase	3.6KW	3x2.5mm²+2x0.5mm²
GC-EVCC-11	Type2 To Type2	16A	3 Phase	11KW	5x2.5mm²+2x0.5mm²
GC-EVCC-7.2	Type2 To Type2	32A	1 Phase	7.2KW	3x6mm²+2x0.5mm²
GC-EVCC-22	Type2 To Type2	32A	3 Phase	22KW	5x6mm²+2x0.5mm²
